Industrial bunk bed, 1:24 STL files

An industrial bunk bed for your 1:24 garage, workshop office, military bunker or gritty urban diorama. The frame has pipe-style posts and metal slats, so it fits right into any rugged, mechanical or retro scene.

This is the bed from my Mancave garage. You can see it in the photos above, and in the video at the top of that post.

Shop / STL files

Industrial bunk bed, 1:24 STL files

A pipe-frame bunk bed with metal slats and two mattresses, for garages, bunkers and gritty city scenes.

€4.00incl. VAT

Buy and download

Instant download after payment. iDEAL and card accepted.

Scale
1:24 (scale it in your slicer for 1:18, 1:25 or 1:32)
Format
STL
Designed in
Tinkercad
Parts
bunk bed frame, 2 mattresses
Test-printed on
Bambu Lab X1 Carbon
Delivery
instant download after payment

What's in the download

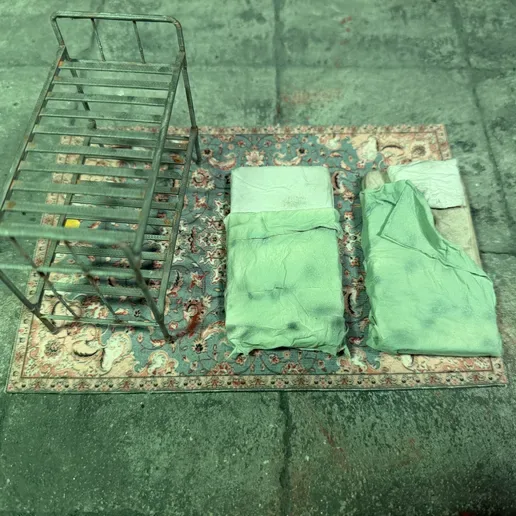

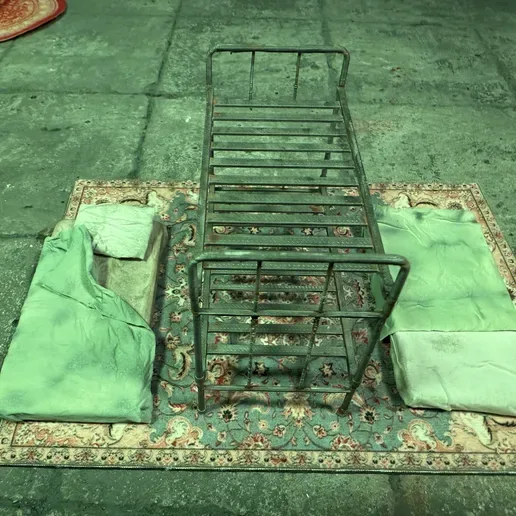

  • Bunk bed frame with an upper and a lower tier
  • 2 solid mattresses, sized to drop right into the frame

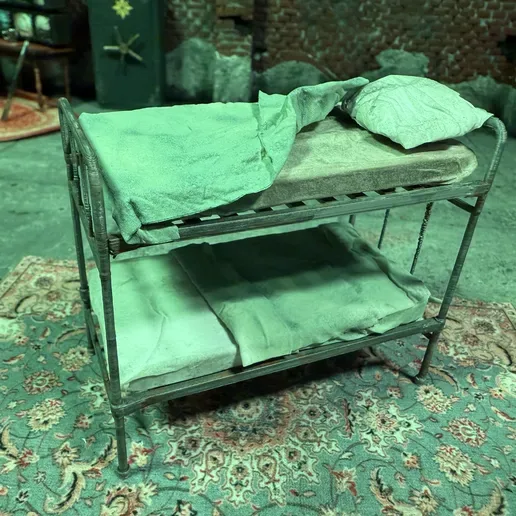

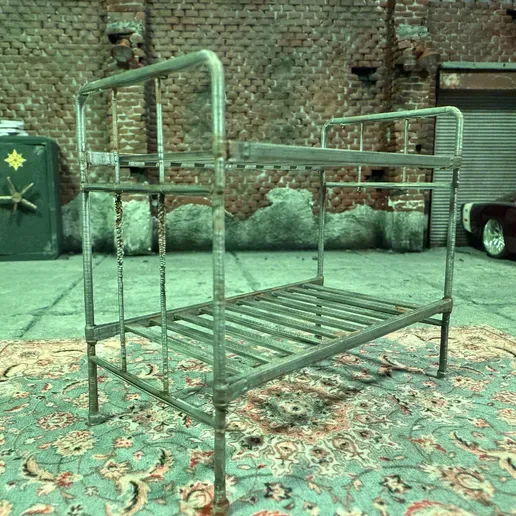

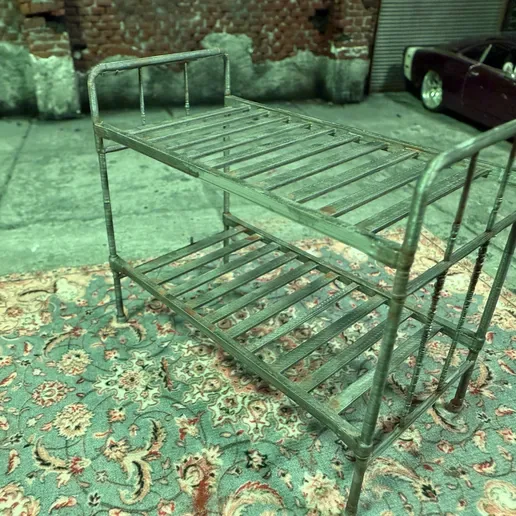

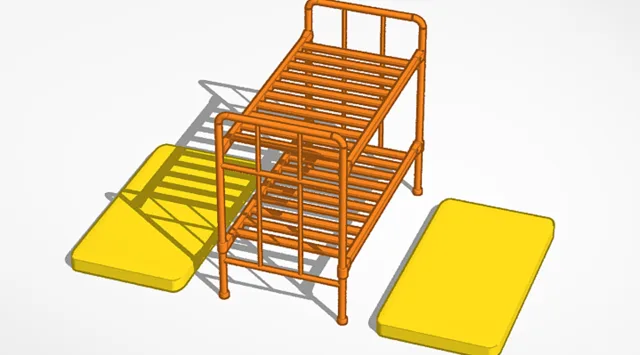

The orange and yellow parts in the last photo are the designs as they come out of Tinkercad. The beds in the photos are printed on my Bambu Lab X1 Carbon.

The lived-in bedding look

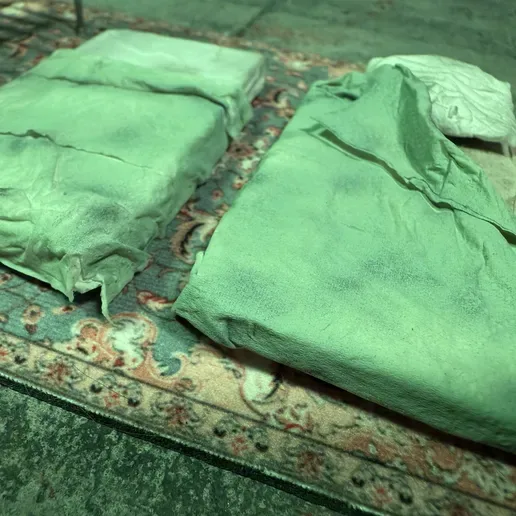

The mattresses come as solid files. To get the rumpled sheets and pillows you see in the photos, wrap the printed mattresses in ordinary facial tissue soaked in a mix of water and PVA (wood) glue. Shape the folds and pillows while it's wet, let it dry hard, then paint.

The slats are thin, so a fine setup pays off.

Filament (FDM)

  • Layer height: 0.1 or 0.12 mm
  • Nozzle: 0.2 mm is ideal for the thin rails; 0.4 mm works if your retraction is well tuned
  • Infill: 15–20 %, gyroid or grid
  • Supports: yes. Tree supports hold the upper bunk without fusing to the lower frame.

Resin (SLA/MSLA)

  • Layer height: 0.03–0.05 mm
  • Angle the frame 30–45° on the build plate so the long slats don't warp
  • Light or medium supports on the underside only, so the tips don't scar the surfaces where the mattresses sit

Want more from the same garage? The industrial steel door and the modular industrial windows are in the Mancave too.

For personal use. Please don't share or resell the files.
